Rectangular section |

|
|
Rectangular section |
|
Compute the shear stresses due to the vertical shear force Vy=1.0 lb
Analytical solution:
tsy: average transverse shear at level y in section;
mp: the first moment, with respect to the neutral axis, of the the cross sectional area above the level y;
Iy: moment of inertia of the entire cross section, taken with respect to the neutral axis;
: the width of the cross section at level y.
Reference: A-G Cote. Mécanique des solides déformable. Page 562.
Filename : cote-p562-shear-rectangular.shd

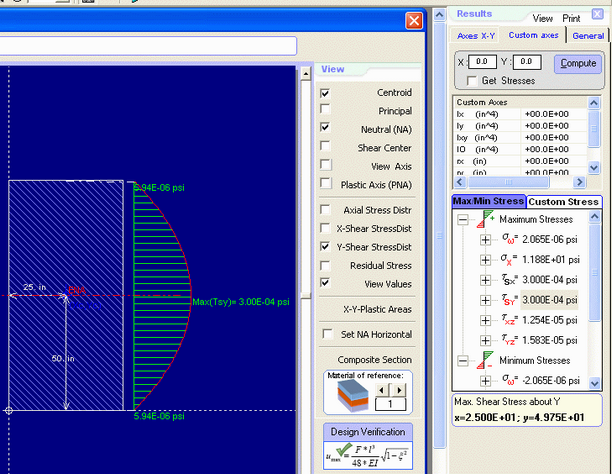

ShapeDesigner results:
