Torsion of Thin-wall I section member |

|
|
Torsion of Thin-wall I section member |
|

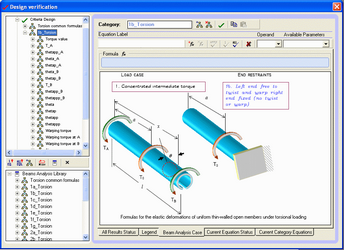

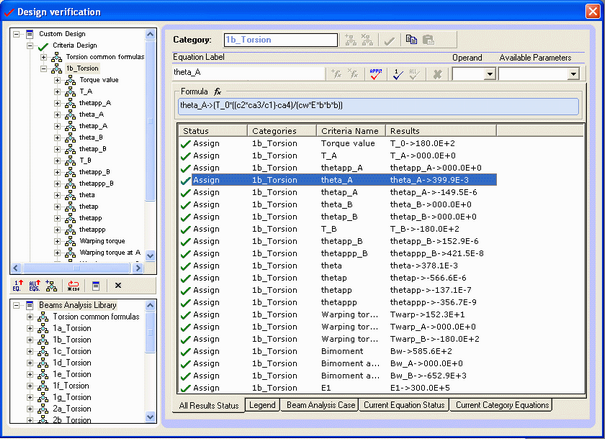

A small cantilever beam, with left end free to twist and warp right end fixed (no twist or warp). select Case 1b_tosion in custom design solver component
Reference: Warren C. Young, Roark's Formulas for Stress & Strain, 1989, Sixth Edition, McGraw-Hill, Inc. ISBN 0-07-072541-1. Page 392, example 2.
Filename: roarks-p392-ex2.SHD
Data:
l=240 in, T=18 000 lb-in; a=144 in, E=30.106lb/in2; G =12.106lb/in2,
